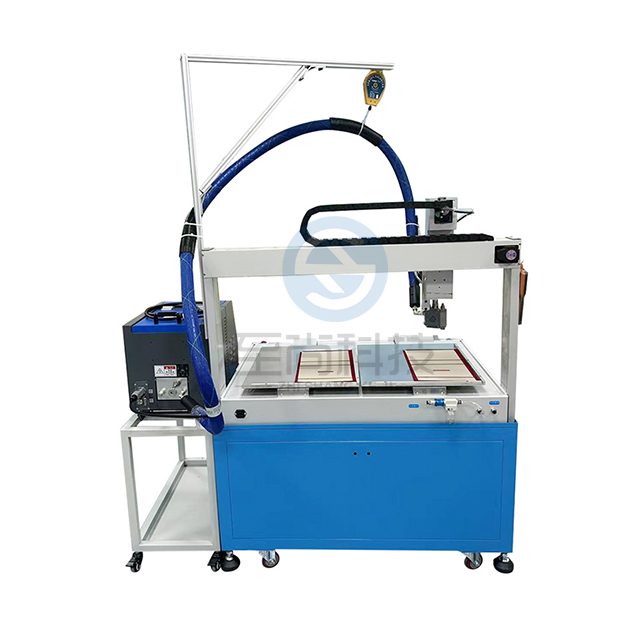

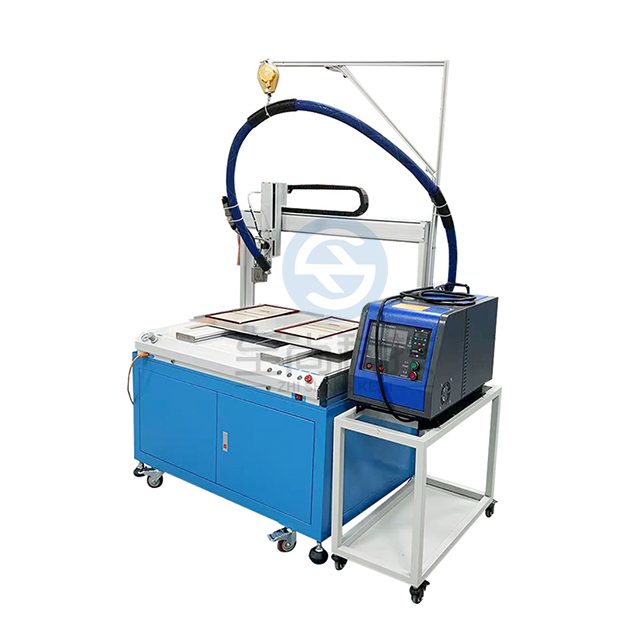

3-Axis Dual-Station Hot Melt Gluing Machine (Standard / Large)
Dual-Station Glue Dispensing Machine for Small Rigid Boxes, Cases, Jewelry and Luxury Boxes
- Products
- Small boxes, cases, jewelry, luxury and cosmetic boxes, recessed card inserts
- Glue
- Hot melt, pressure-sensitive adhesive
- Build / gluing positions
- 3-axis · dual-station · bottom, sides and flat faces at once
Tel / WhatsApp / WeChat: +86 158 2092 8436
Features
- Suited to small boxes, cases, jewelry boxes, luxury boxes, cosmetic boxes and recessed card insert products.
- Large gluing size, strong versatility across glued products, high flexibility and easy operation.
- The machine can be placed at any position according to gluing requirements.
- Applies hot melt and pressure-sensitive adhesive; can glue the bottom, sides and flat faces of a box at the same time.
- Fully upgraded control system: faster speed, more stable performance.
Technical Parameters
| Model | ZS-S088A-R /ZS-S088A-2-R |
|---|---|
| Machine name | 3-Axis Dual-Station Hot Melt Gluing Machine (Standard / Large) |
| Overall size (L/W/H) | 890*840*1590MM / 1140*890*1590MM |
| Effective size | 480*300*2*130MM / 540*420*2*130MM |
| Working speed | 0.9M/S |
| Rated power | 1400W |
| Glue line width | 3-10MM |
| Voltage | 220V/AC——50Hz |
| Air pressure | 0.6MPa |
Data from the Zhishang product brochure.
Specifications are for reference only; final specifications are subject to our quotation.
Trade Information
| MOQ | [to be provided] |
|---|---|
| Payment terms | [to be provided] |
| Lead time | [to be provided] |
| Packaging | [to be provided] |
| Warranty | Glue nozzle: lifetime repair and replacement (trade-in); whole-machine warranty [to be provided] |
| Service response | Overseas: within 7 days |
| Overseas support | Contact us for overseas installation and support options |
FAQ
Which glues can it use?
Applies hot melt and pressure-sensitive adhesive; can glue the bottom, sides and flat faces of a box at the same time.
What power and air supply are needed?
220V/AC——50Hz, 0.6MPa
What line width can it produce?
3-10MM
Can it fit into my existing line?
The machine can be placed at any position according to gluing requirements.
How fast is after-sales service?
Overseas machine faults: service response within 7 days.
How are overseas installation and support arranged?
Contact us for overseas installation and support options.
Price and lead time?
[to be provided]
