Browse by process: cold glue, hot glue, spraying, bubble pressing, case making and custom machines.

Cold Glue Machines

White, yellow and universal glue

Inline 4-Axis Cold Glue Dispensing Machine for Rigid Boxes ZS-S088E-4
ZS-S088E-4

Inline 4-Axis Cold Glue Dispensing Machine for Rigid Boxes

  • Working speed1.2M/S
  • Glue line width3-10MM
View details →
4-Axis Cabinet Cold Glue Dispensing Machine ZS-S088C
ZS-S088C

4-Axis Cabinet Cold Glue Dispensing Machine

  • Working speed1.2M/S
  • Glue line width3-10MM
View details →
3-Axis Cabinet Cold Glue Dispensing Machine ZS-S088D
ZS-S088D

3-Axis Cabinet Cold Glue Dispensing Machine

  • Working speed1.2M/S
  • Glue line width3-10MM
View details →
4-Axis Dual-Station Glue Dispensing Machine (Standard / Large) ZS-S088B /ZS-S088B-2
ZS-S088B /ZS-S088B-2

4-Axis Dual-Station Glue Dispensing Machine (Standard / Large)

  • Working speed0.9M/S
  • Glue line width3-10MM
View details →
3-Axis Dual-Station Glue Dispensing Machine (Standard / Large) ZS-S088A /ZS-S088A-2
ZS-S088A /ZS-S088A-2

3-Axis Dual-Station Glue Dispensing Machine (Standard / Large)

  • Working speed0.9M/S
  • Glue line width3-10MM
View details →

Hot Glue Machines

Hot melt and pressure-sensitive adhesive

Inline 4-Axis Hot Melt Gluing Machine for Rigid Boxes ZS-S088R-4
ZS-S088R-4

Inline 4-Axis Hot Melt Gluing Machine for Rigid Boxes

  • Working speed1.2M/S
  • Glue line width3-10MM
View details →
4-Axis Cabinet Hot Melt Glue Dispensing Machine ZS-S088C-4
ZS-S088C-4

4-Axis Cabinet Hot Melt Glue Dispensing Machine

  • Working speed1.2M/S
  • Glue line width3-10MM
View details →
3-Axis Cabinet Hot Melt Glue Dispensing Machine ZS-S088D-4
ZS-S088D-4

3-Axis Cabinet Hot Melt Glue Dispensing Machine

  • Working speed1.2M/S
  • Glue line width3-10MM
View details →
3-Axis Dual-Station Hot Melt Gluing Machine (Standard / Large) ZS-S088A-R /ZS-S088A-2-R
ZS-S088A-R /ZS-S088A-2-R

3-Axis Dual-Station Hot Melt Gluing Machine (Standard / Large)

  • Working speed0.9M/S
  • Glue line width3-10MM
View details →
Inline 3-Axis Hot Melt Gluing Machine for Rigid Boxes ZS-S088R-3
ZS-S088R-3

Inline 3-Axis Hot Melt Gluing Machine for Rigid Boxes

  • Working speed1M/second
  • Glue line width5-12mm
View details →
4-Axis Dual-Station Hot Melt Gluing Machine (Standard / Large) ZS-S088B-2-R
ZS-S088B-2-R

4-Axis Dual-Station Hot Melt Gluing Machine (Standard / Large)

  • Working speed0.8M/second
  • Glue line width5-12mm
View details →

Glue Spraying

White latex, universal and other sprayable glues

3-Axis Glue Spraying Machine ZS-S088P
ZS-S088P

3-Axis Glue Spraying Machine

  • Working speed1M/S
  • Glue line width3-20MM
View details →

Bubble Pressing

Bottoms, blister inserts, paper trays

Inline Rigid Box Bubble Pressing Machine ZS-YH4040
ZS-YH4040

Inline Rigid Box Bubble Pressing Machine

  • Working speed20pcs/minute
View details →

Case Making

Semi-automatic small case forming

Semi-Automatic Small Case Making Machine CS4539
CS4539

Semi-Automatic Small Case Making Machine

  • Working speed15-34 pcs/min
View details →

Custom (Non-Standard) Machines

We build custom machines to your specifications and requirements.

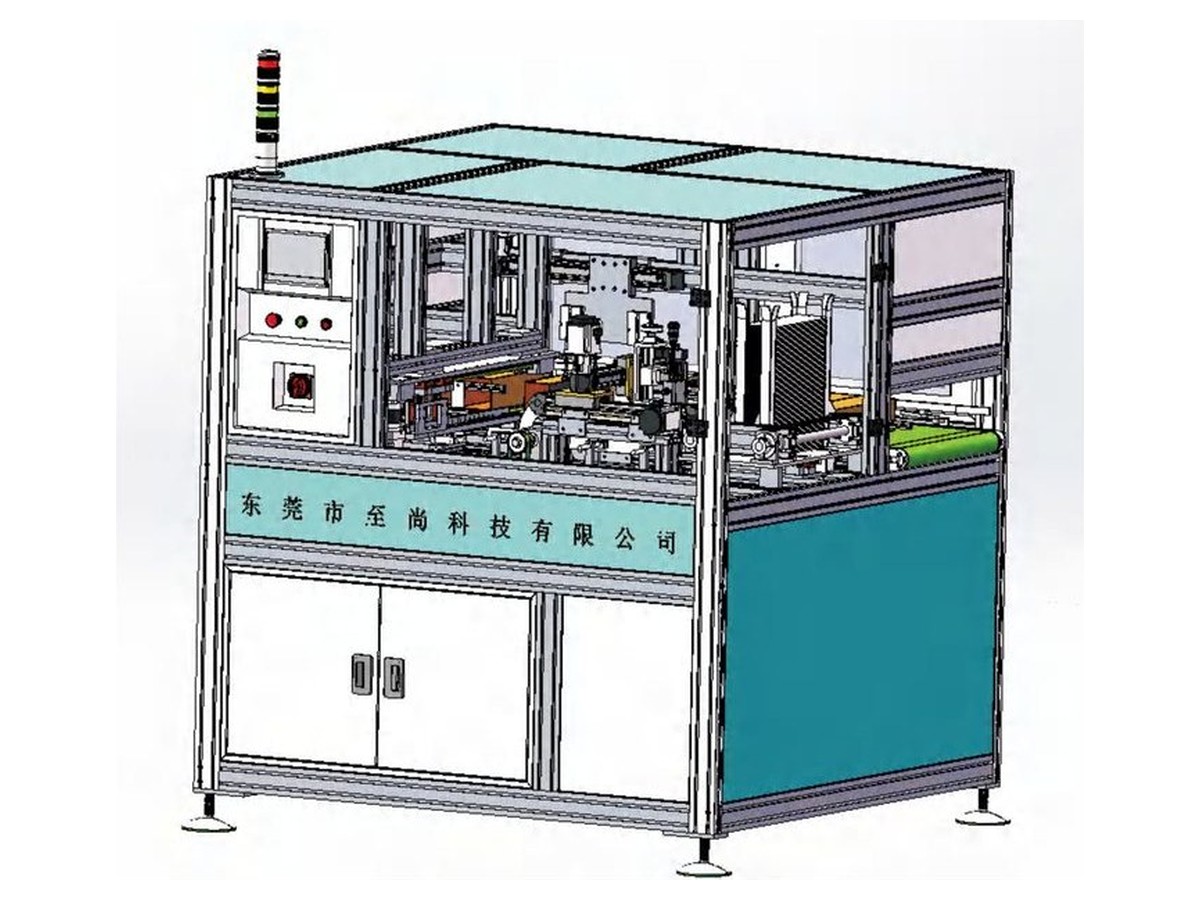

ZS-FB-001
Rendering
ZS-FB-001

Wine Box Board Assembly Machine (custom)

Non-standard machine, built to order.

ZS-FB-002
Image coming soon
ZS-FB-002

Automatic Paper Tray / Insert Folding Machine

Non-standard machine, built to order.

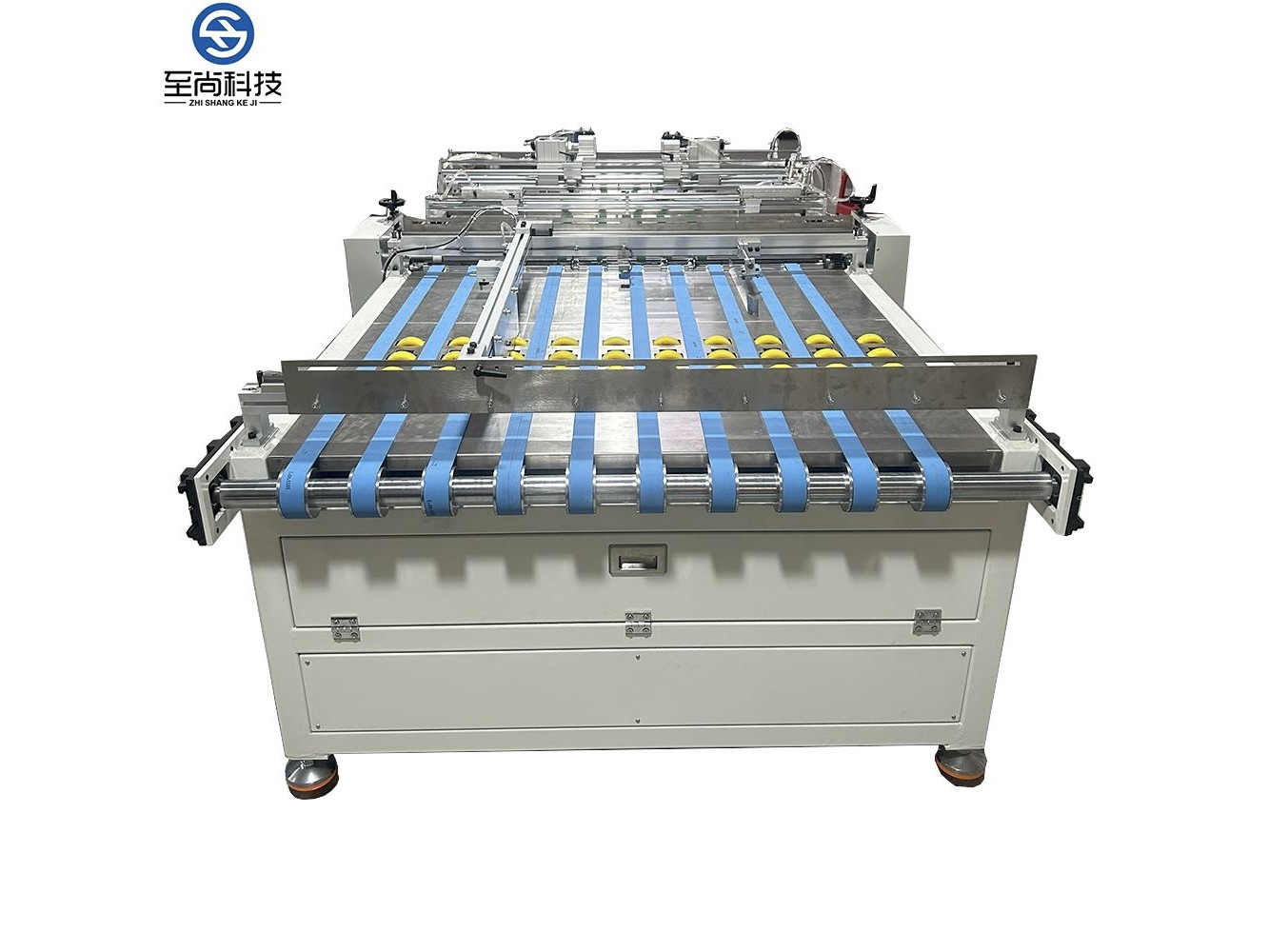

ZS-FB-007 On-line Punching and Slotting Machine for Folding Boxes
ZS-FB-007

On-line Punching and Slotting Machine for Folding Boxes

Punching and slotting of folding boxes

  • Exterior dimensionsL3100*W1400*H1200MM
  • Working dimensions950*210MM
  • Net weight850kg
  • Work speed1200pcs/Hour
  • Rated power0.9KW
  • Air pressure0.6Mpa
  • Voltage220AC

Data from the Zhishang company presentation (PPT).

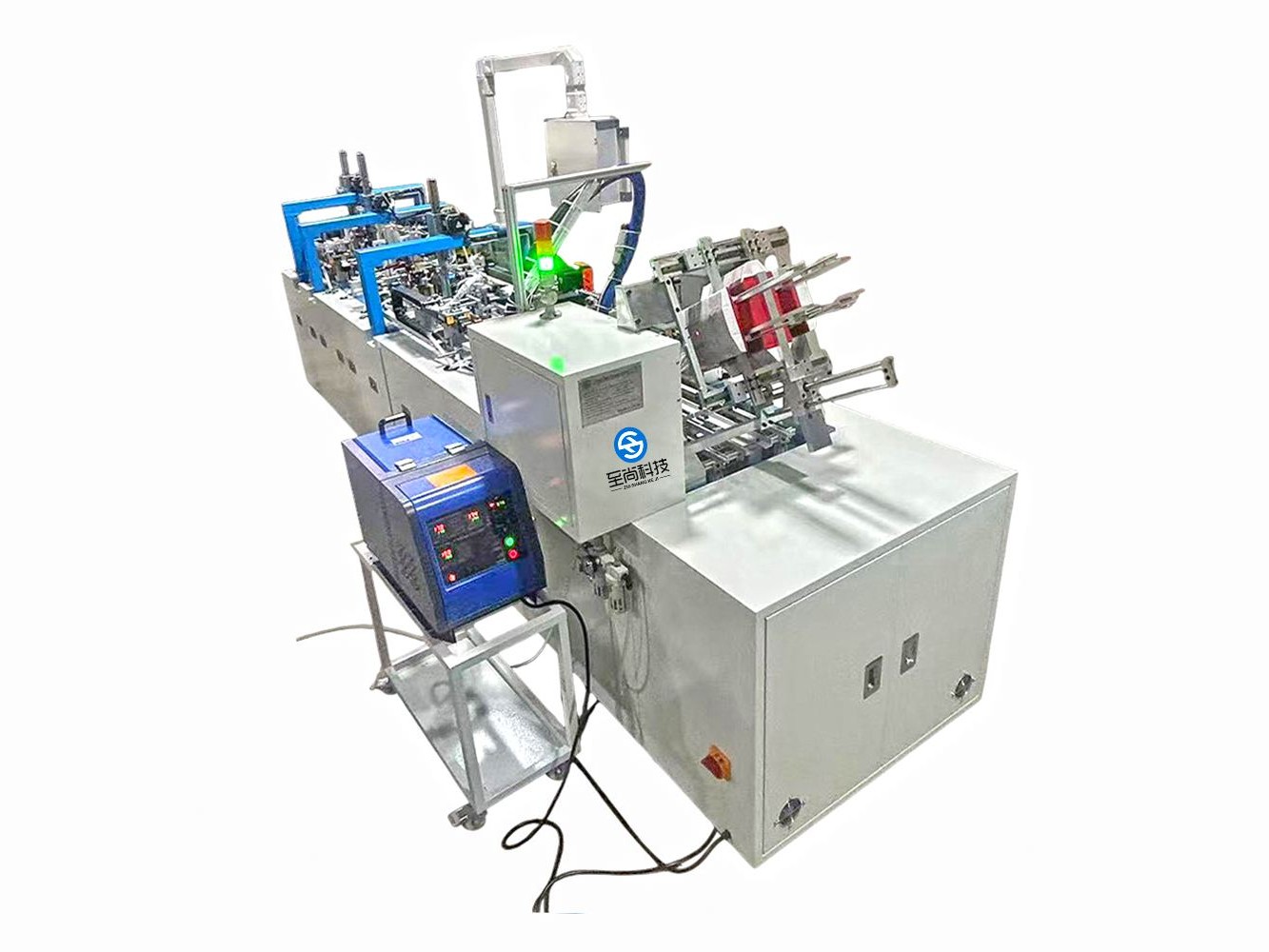

ZS-FB-004 Fully Automatic Wine Box Inner Tray Forming Machine
ZS-FB-004

Fully Automatic Wine Box Inner Tray Forming Machine

Forming of wine box inner trays

  • Exterior dimensionsL4705*W1130*H2076MM
  • Working dimensions350*320MM
  • Net weight1100kg
  • Work speed800-1000pcs/Hour
  • Rated power10KW
  • Air pressure0.6Mpa
  • Voltage220AC

Data from the Zhishang company presentation (PPT).

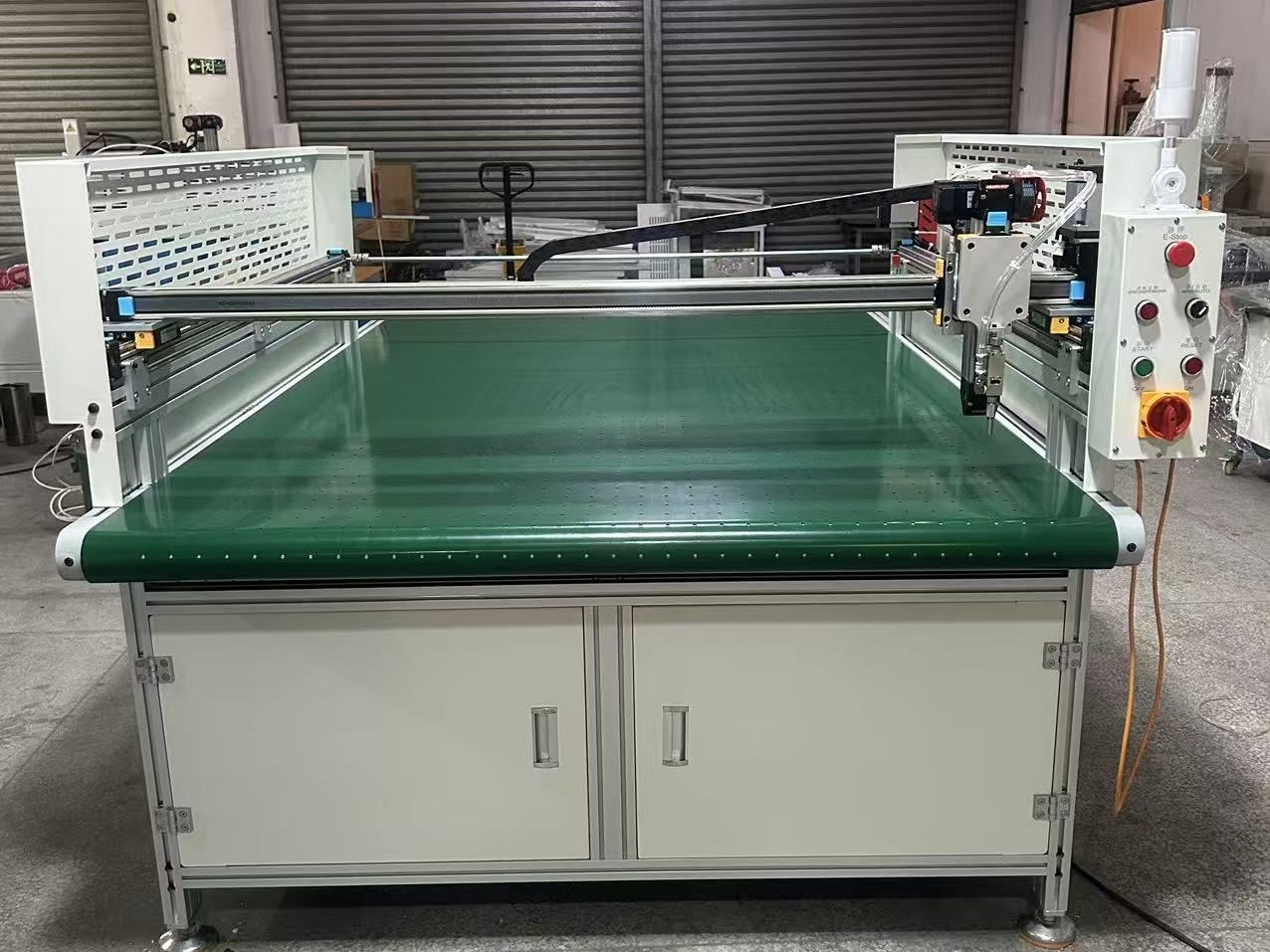

ZS-FB-019 On-line Three-Axis Cold Glue Dispensing Machine
ZS-FB-019

On-line Three-Axis Cold Glue Dispensing Machine

For on-line production lines; heavy-duty machine running at high speed

  • Exterior dimensionsL3150*W1850*H1530MM
  • Working dimensions1200*1200MM
  • Net weight606kg
  • Work speed500-800pcs/hour
  • Rated power6KW
  • Air pressure0.6Mpa
  • Voltage220AC

Data from the Zhishang company presentation (PPT).

ZS-FB-026 Corner Guard Semi-Automatic Forming Machine
ZS-FB-026

Corner Guard Semi-Automatic Forming Machine

Honeycomb paperboard corner bonding

  • Exterior dimensionsL2260*W1200*H1600MM
  • Working dimensions800*150*80MM
  • Net weight370kg
  • Work speed600-700pcs/hour
  • Rated power4KW
  • Air pressure0.6Mpa
  • Voltage220AC

Data from the Zhishang company presentation (PPT).

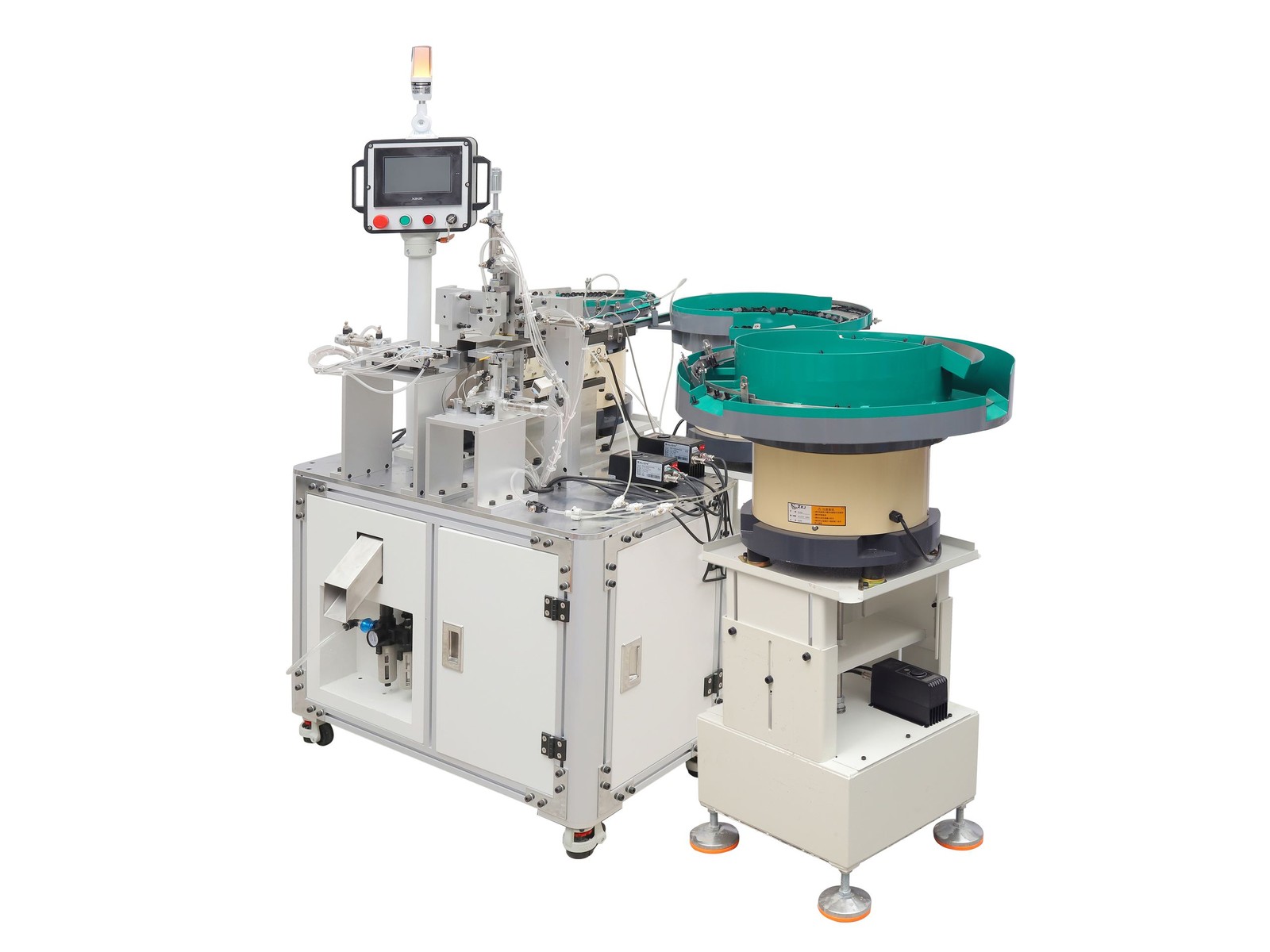

ZS-FB-017 Plastic Snap Fastener Splitting and Assembly Machine
ZS-FB-017

Plastic Snap Fastener Splitting and Assembly Machine

Material separation and assembly for plastic snap fasteners (male and female)

  • Exterior dimensions1200*1170*1780mm and 650*650*1020mm
  • Net weight537kg
  • Work speed2S/pc
  • Rated power2.5KW
  • Air pressure0.6Mpa
  • Voltage220AC

Data from the Zhishang company presentation (PPT).

Specification Comparison

Data from the Zhishang product brochure.

ModelMachine nameOverall size (L/W/H)Effective sizeWorking speedRated powerGlue line width
ZS-S088E-4Inline 4-Axis Cold Glue Dispensing Machine for Rigid Boxes1600*1080*1550MM600*600*130MM/50*50*25MM1.2M/S2300W3-10MM
ZS-S088R-4Inline 4-Axis Hot Melt Gluing Machine for Rigid Boxes1600*1080*1550MM600*600*130MM/50*50*25MM1.2M/S5300W3-10MM
ZS-S088C4-Axis Cabinet Cold Glue Dispensing Machine1330*1090*1600MM900*600*150MM/50*50*10MM1.2M/S2300W3-10MM
ZS-S088C-44-Axis Cabinet Hot Melt Glue Dispensing Machine1330*1090*1600MM900*600*150MM/50*50*10MM1.2M/S5300W3-10MM
ZS-S088D3-Axis Cabinet Cold Glue Dispensing Machine1330*1090*1600MM900*600MM/50*50MM1.2M/S2000W3-10MM
ZS-S088D-43-Axis Cabinet Hot Melt Glue Dispensing Machine1330*1090*1500MM900*600MM/50*50MM1.2M/S4000W3-10MM
ZS-S088B /ZS-S088B-24-Axis Dual-Station Glue Dispensing Machine (Standard / Large)890*840*1590MM / 1140*890*1590MM480*300*2*130MM / 540*420*2*130MM0.9M/S1400W3-10MM
ZS-S088A /ZS-S088A-23-Axis Dual-Station Glue Dispensing Machine (Standard / Large)890*840*1350MM / 1140*890*1350MM450*300*2*150MM / 500*420*2*150MM0.9M/S1400W3-10MM
ZS-S088A-R /ZS-S088A-2-R3-Axis Dual-Station Hot Melt Gluing Machine (Standard / Large)890*840*1590MM / 1140*890*1590MM480*300*2*130MM / 540*420*2*130MM0.9M/S1400W3-10MM
ZS-S088R-3Inline 3-Axis Hot Melt Gluing Machine for Rigid BoxesL1600*W1080*H1550MML600*W600*H130MM / L60*W60*H30MM1M/second5300W5-12mm
ZS-S088B-2-R4-Axis Dual-Station Hot Melt Gluing Machine (Standard / Large)L890*W840*H1350MM / L1140*W890*H1350MML450*W300*2*H150MM / L500*W400*2*H150MM; min L50*W50*H10MM0.8M/second3500W5-12mm
ZS-S088P3-Axis Glue Spraying Machine1400*1100*1500MM880*520*130MM / 50*50*1MM1M/S1400W3-20MM
ZS-YH4040Inline Rigid Box Bubble Pressing Machine1500*1500*1500MM400*400*120MM / 60*60*30MM20pcs/minute1200W—
