Inline 3-Axis Hot Melt Gluing Machine for Rigid Boxes
Inline Rigid Box Gluing Machine
3-Axis Hot Melt, Works Across Assembly Lines
- Products
- Lid-and-base, book-shaped, wine, box-in-box, phone, cosmetics and jewelry boxes
- Glue
- Sub-sensitive glue, hot melt glue
- Build / gluing positions
- 3-axis · inline · flat gluing
Tel / WhatsApp / WeChat: +86 158 2092 8436
Features
- Suitable for any workshop assembly line or fully automatic production line, and can be used across the line; flexible and convenient.
- Separate assembly line with start-stop function, helping to improve efficiency and ensure product quality.
- In semi-automatic use, a wooden board is placed on the machine runner and handled manually.
- For lid-and-base boxes, book-shaped boxes, wine boxes, box-in-box, mobile phone boxes, cosmetics boxes, jewelry boxes and more.

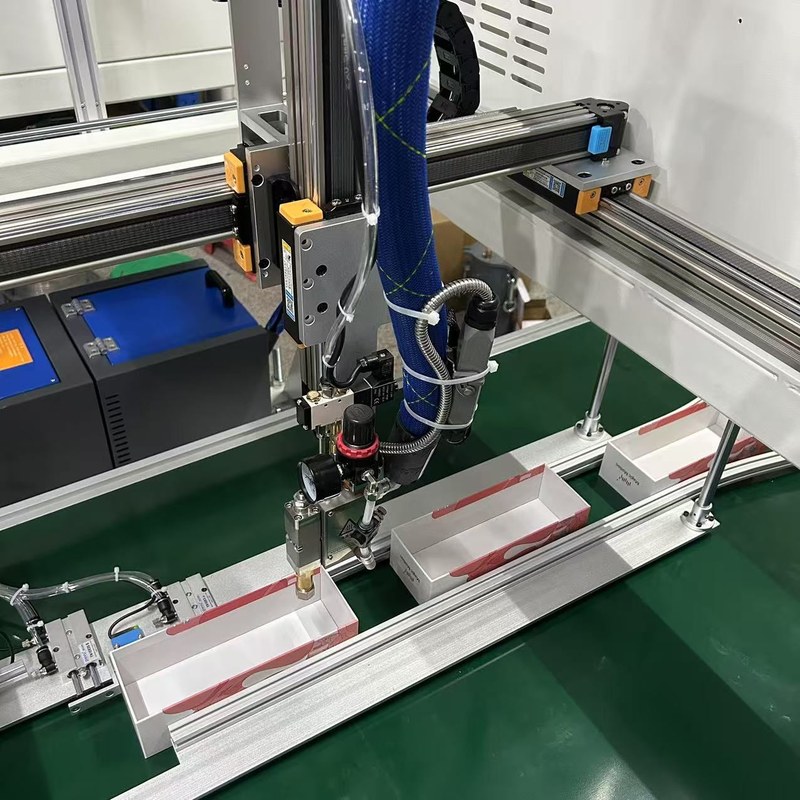

- Flat gluing; for sub-sensitive glue and hot melt glue; glue width 5-12mm (adjusted with different gun nozzles).
Technical Parameters
| Model | ZS-S088R-3 |
|---|---|
| Machine name | Inline 3-Axis Hot Melt Gluing Machine for Rigid Boxes |
| Overall size (L/W/H) | L1600*W1080*H1550MM |
| Effective size | L600*W600*H130MM / L60*W60*H30MM |
| Working speed | 1M/second |
| Rated power | 5300W |
| Glue line width | 5-12mm |
| Voltage | 220AC |
| Air pressure | 0.6Mpa |
Data from the Zhishang company presentation (PPT).
Specifications are for reference only; final specifications are subject to our quotation.
Trade Information
| MOQ | [to be provided] |
|---|---|
| Payment terms | [to be provided] |
| Lead time | [to be provided] |
| Packaging | [to be provided] |
| Warranty | Glue nozzle: lifetime repair and replacement (trade-in); whole-machine warranty [to be provided] |
| Service response | Overseas: within 7 days |
| Overseas support | Contact us for overseas installation and support options |
FAQ
What power and air supply are needed?
220AC, 0.6Mpa
What line width can it produce?
5-12mm
How fast is after-sales service?
Overseas machine faults: service response within 7 days.
How are overseas installation and support arranged?
Contact us for overseas installation and support options.
Price and lead time?
[to be provided]
Request a Quote
Tell us about your boxes and glue. We will reply as soon as possible.
Contact
Dongguan Zhishang Automation Technology Co., Ltd
Address: No. 42, Dongcheng Section, Huancheng East Road, Dongcheng Subdistrict, Dongguan, Guangdong, China
Contact: Jelly Chen
Tel / WhatsApp / WeChat: +86 158 2092 8436
Email: sales@zhishangkj.com
Nozzle covered by invention and utility model patents
