Inline 4-Axis Cold Glue Dispensing Machine for Rigid Boxes
Inline Rigid Box Gluing Machine
Replaces Two Operators, Links to Automatic Lid-and-Base Box Lines
- Products
- Box products; links to automatic lid-and-base box machines
- Glue
- White glue, yellow glue, universal glue
- Build / gluing positions
- 4-axis · inline · bottom, sides and flat faces at once
Tel / WhatsApp / WeChat: +86 158 2092 8436
Machine in Action
Video from the Zhishang website (glue-machine.com).
Features
- Suited to inline operation on box products; one machine saves two people on manual gluing.
- Works with manual assembly lines, or inline with automatic lid-and-base box machines.
- The machine can be placed at any position according to gluing requirements.

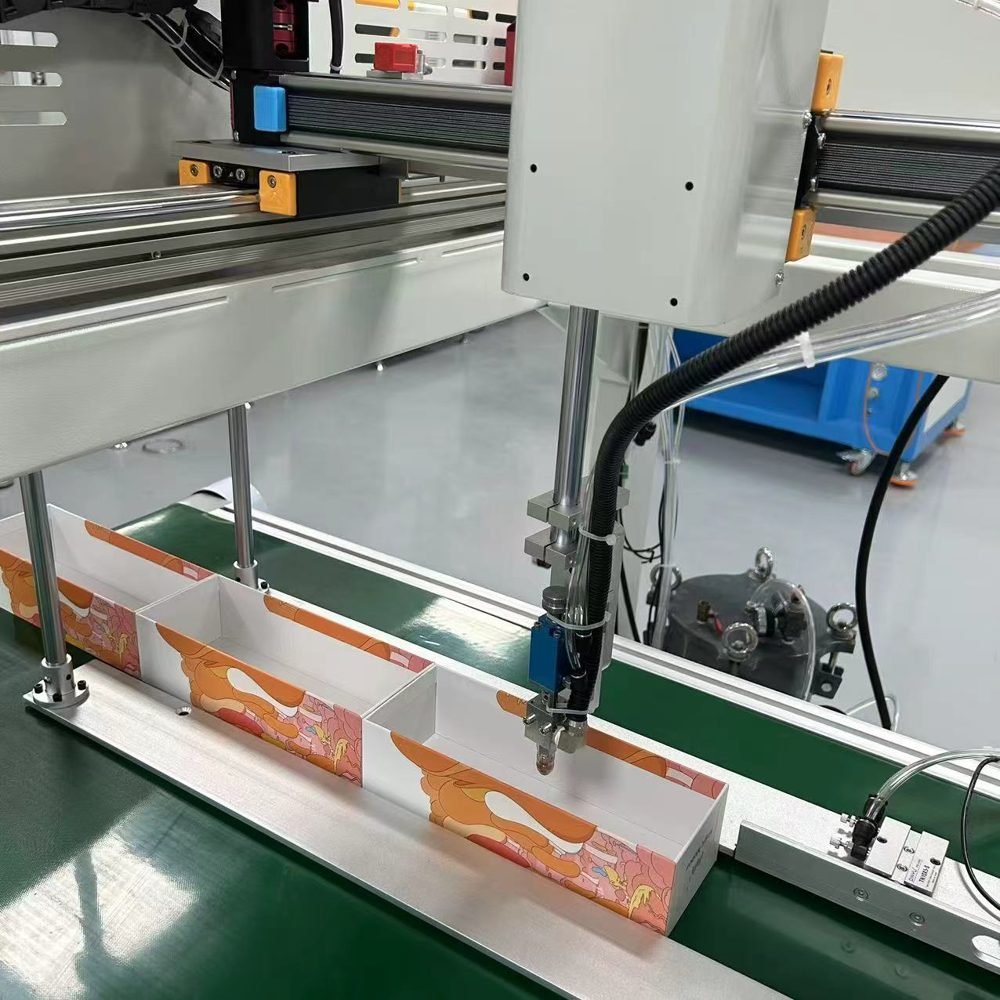

- Applies white glue, yellow glue and universal glue; can glue the bottom, sides and flat faces of a box at the same time.
- Fully upgraded control system: faster speed, more stable performance.
Technical Parameters
| Model | ZS-S088E-4 |
|---|---|
| Machine name | Inline 4-Axis Cold Glue Dispensing Machine for Rigid Boxes |
| Overall size (L/W/H) | 1600*1080*1550MM |
| Effective size | 600*600*130MM/50*50*25MM |
| Working speed | 1.2M/S |
| Rated power | 2300W |
| Glue line width | 3-10MM |
| Voltage | 220V/AC——50Hz |
| Air pressure | 0.6MPa |
Data from the Zhishang product brochure.
Trade Information
| MOQ | [to be provided] |
|---|---|
| Payment terms | [to be provided] |
| Lead time | [to be provided] |
| Packaging | [to be provided] |
| Warranty | Glue nozzle: lifetime repair and replacement (trade-in); whole-machine warranty [to be provided] |
| Service response | Overseas: within 7 days |
| Overseas support | Contact us for overseas installation and support options |
FAQ
Which glues can it use?
Applies white glue, yellow glue and universal glue; can glue the bottom, sides and flat faces of a box at the same time.
What power and air supply are needed?
220V/AC——50Hz, 0.6MPa
What line width can it produce?
3-10MM
Can it fit into my existing line?
The machine can be placed at any position according to gluing requirements. Works with manual assembly lines, or inline with automatic lid-and-base box machines.
How fast is after-sales service?
Overseas machine faults: service response within 7 days.
How are overseas installation and support arranged?
Contact us for overseas installation and support options.
Price and lead time?
[to be provided]
Request a Quote
Tell us about your boxes and glue. We will reply as soon as possible.
Contact
Dongguan Zhishang Automation Technology Co., Ltd
Address: No. 42, Dongcheng Section, Huancheng East Road, Dongcheng Subdistrict, Dongguan, Guangdong, China
Contact: Jelly Chen
Tel / WhatsApp / WeChat: +86 158 2092 8436
Email: sales@zhishangkj.com
Nozzle covered by invention and utility model patents
