3-Axis Cabinet Cold Glue Dispensing Machine
3-Axis Cold Glue Dispensing Machine
One Machine Replaces Two Operators
- Products
- Large cases, recessed card inserts
- Glue
- White glue, yellow glue, universal glue
- Build / gluing positions
- 3-axis · cabinet · box bottoms, cases, flat recessed card inserts
Tel / WhatsApp / WeChat: +86 158 2092 8436
Features
- Suited to large cases and recessed card insert products; high gluing precision; one machine replaces 2 workers.
- Large gluing size, strong versatility across glued products, high flexibility and easy operation.
- The machine can be placed at any position according to gluing requirements.
- Applies white glue, yellow glue and universal glue to box bottoms, cases and flat recessed card insert surfaces.
- Fully upgraded control system: faster speed, more stable performance.
Technical Parameters
| Model | ZS-S088D |
|---|---|
| Machine name | 3-Axis Cabinet Cold Glue Dispensing Machine |
| Overall size (L/W/H) | 1330*1090*1600MM |
| Effective size | 900*600MM/50*50MM |
| Working speed | 1.2M/S |
| Rated power | 2000W |
| Glue line width | 3-10MM |
| Voltage | 220V/AC——50Hz |
| Air pressure | 0.6MPa |
Data from the Zhishang product brochure.
Trade Information
| MOQ | [to be provided] |
|---|---|
| Payment terms | [to be provided] |
| Lead time | [to be provided] |
| Packaging | [to be provided] |
| Warranty | Glue nozzle: lifetime repair and replacement (trade-in); whole-machine warranty [to be provided] |
| Service response | Overseas: within 7 days |
| Overseas support | Contact us for overseas installation and support options |
FAQ
Which glues can it use?
Applies white glue, yellow glue and universal glue to box bottoms, cases and flat recessed card insert surfaces.
What power and air supply are needed?
220V/AC——50Hz, 0.6MPa
What line width can it produce?
3-10MM
Can it fit into my existing line?
The machine can be placed at any position according to gluing requirements.
How fast is after-sales service?
Overseas machine faults: service response within 7 days.
How are overseas installation and support arranged?
Contact us for overseas installation and support options.
Price and lead time?
[to be provided]
Related Models
4-Axis Cabinet Cold Glue Dispensing Machine
- Working speed
1.2M/S - Glue line width
3-10MM

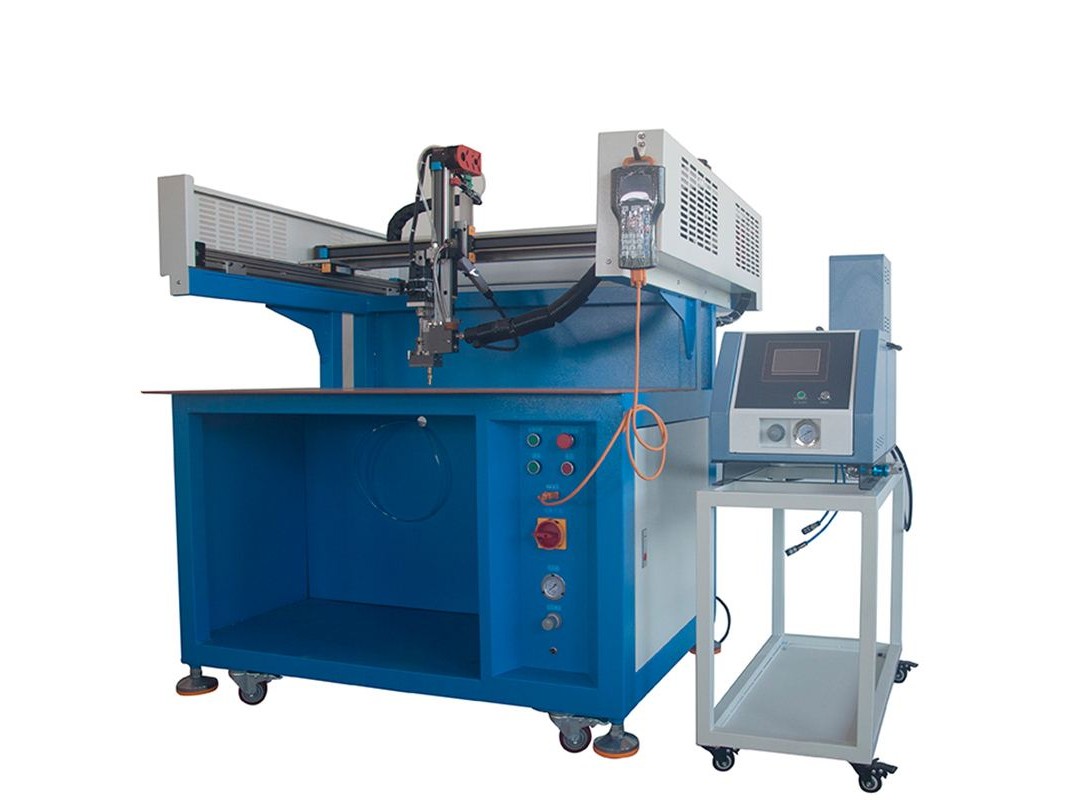

4-Axis Cabinet Hot Melt Glue Dispensing Machine
- Working speed
1.2M/S - Glue line width
3-10MM

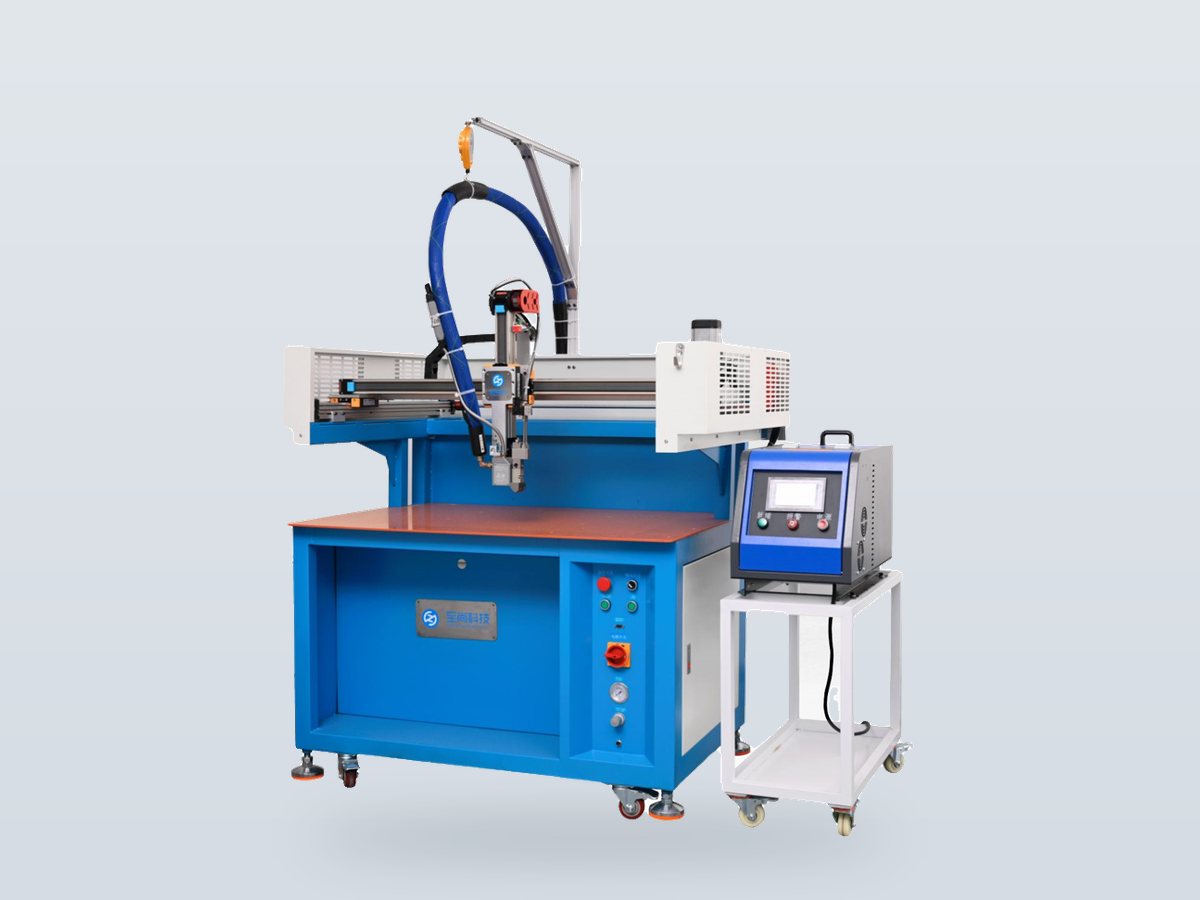

3-Axis Cabinet Hot Melt Glue Dispensing Machine
